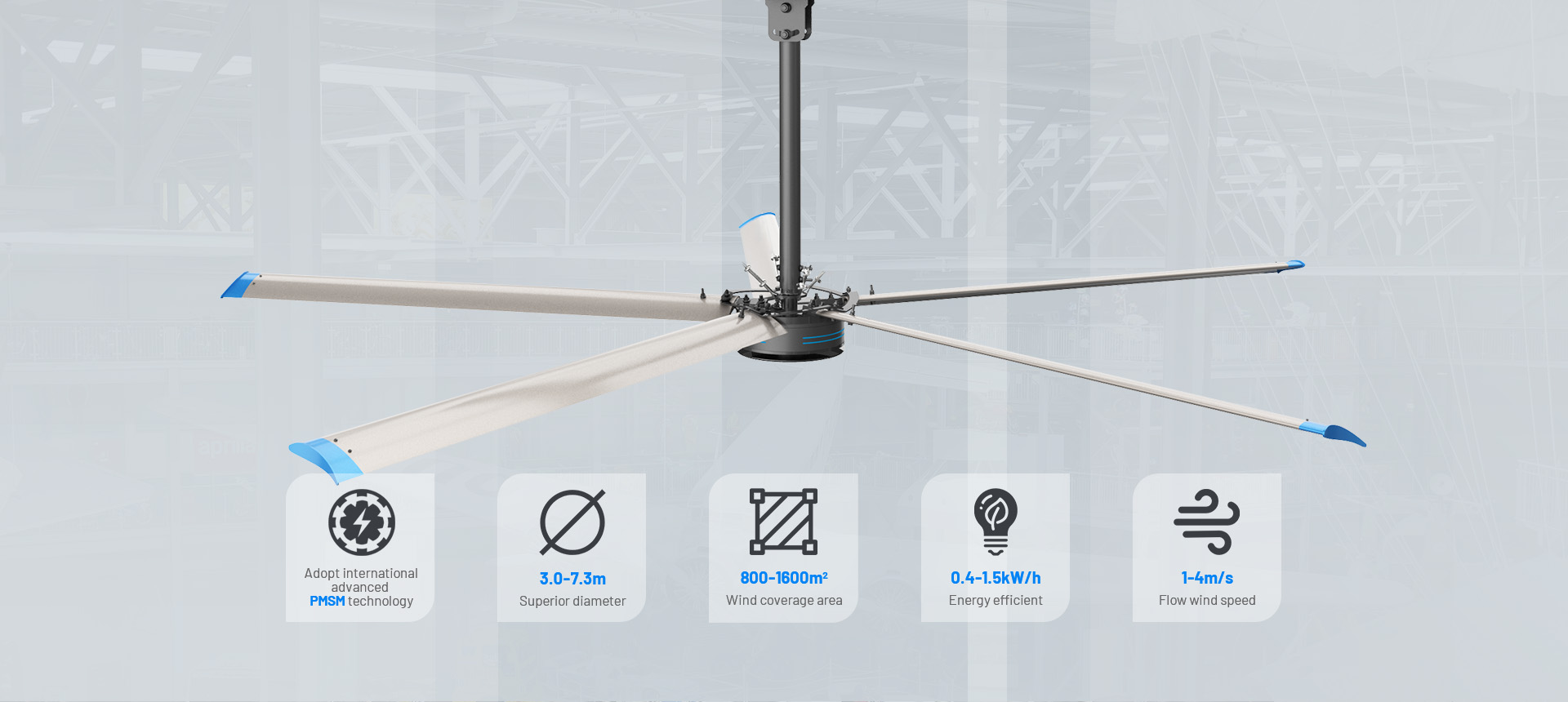

Adopt international advanced PMSM technology, high efficiency、strong power、free maintenance、low noise、energy conservation, fan diameter ranges from 3-7.3m;
PMSM drives Airfoil blade,bringing in simulated natural gentle breeze system, accelerating air circulation of big and tall space.
Continuous air flow can be formed in the covered area, and the wind speed can reach 1-4m/s;
Improve the working environment of personnel - body sensing cooling can reach 3-8 ℃, improve work efficiency, improve occupational health and reduce staff turnover rate; A large range of air circulation can also play a dry dehumidification effect, effectively prevent product corrosion, rust, mildew.
Industrial
Logistics
Military
Husbandry
Public
Superior Diameter 3-7.3M
Covered Area 800-1600㎡
Superior Energy Conservation 0.4-1.5kw/h
Feel Gentle Breeze 1-4m/s
Body cooling 3-8℃
Long Life Service 10-15 years
| MODEL | FSD-FC73 | FSD-FC61 | FSD-FC55 | FSD-FC49 | |
| Fan Diameter (mm) | 7300 | 6100 | 5500 | 4900 | |
| Motor Power (kW) | 1.5 | 1.1 | 1.1 | 0.75 | |
| Rotational Speed (RPM) | 0-55 | 0-60 | 0-65 | 0-70 | |
| Air volume (m³/min) | 15000 | 13200 | 12600 | 9200 | |
| Rated Current (A) | 4.5 | 3.0 | 3.0 | 2.5 | |
| Coverage in Theory (㎡) | 1600 | 1400 | 1100 | 900 | |
| Net Weight (kg) | 135 | 120 | 105 | 80 | |
| Noise (dBA) | ＜40 | ＜40 | ＜40 | ＜40 | |
| * Remark: above data are only for your reference, please contact supplier for final confirmation | |||||
Permanent Magnet Synchronous Motor technology
High-Performance Aerometal Aluminum Alloy Material: AA6063T6511, Extruded
high-end integrated controller
High Strength AA7075 Aluminum Alloy, high pressure forging
220V/380V、50/60HZ
Vertical distance ≥0.9m，Horizontal distance ≥5.3m
≥ 4m
H steel, Steel-concrete square beam, Concrete beam, Ball Net Beam, Angle iron, C beam and so on
